1-Row Bird Wire Barrier for Gutters

1-Row Bird Wire Barrier for Gutters

Adjustable bird wire barrier for gutters, pipes, and pipelines – available in various sizes

0,00 €

Price inquiry

SKU: PL1T40R-098 Categories: ,
30 years
in business
Quality
guaranteed
Made
in EU

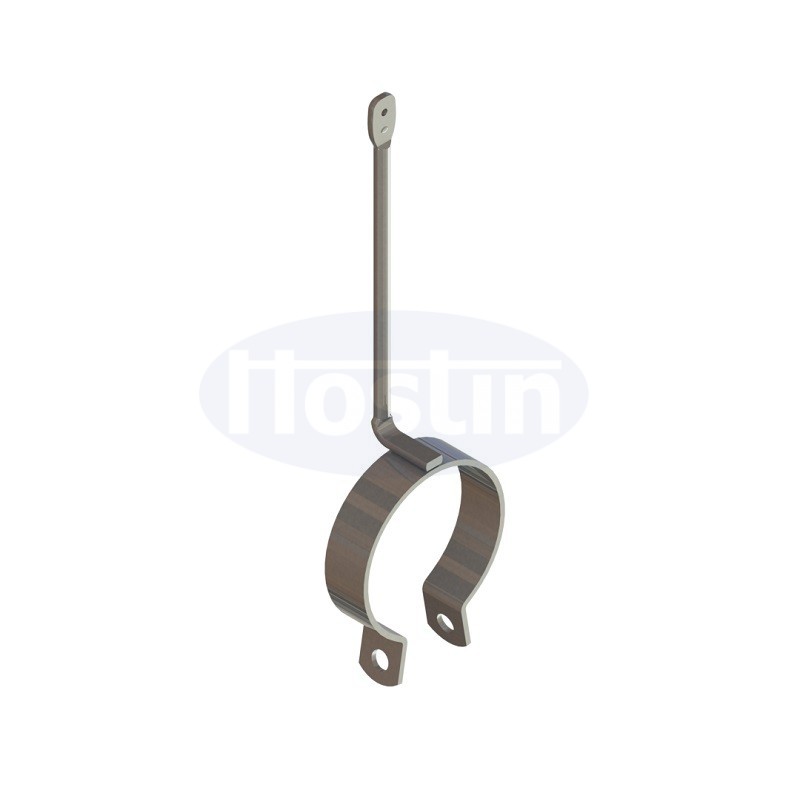

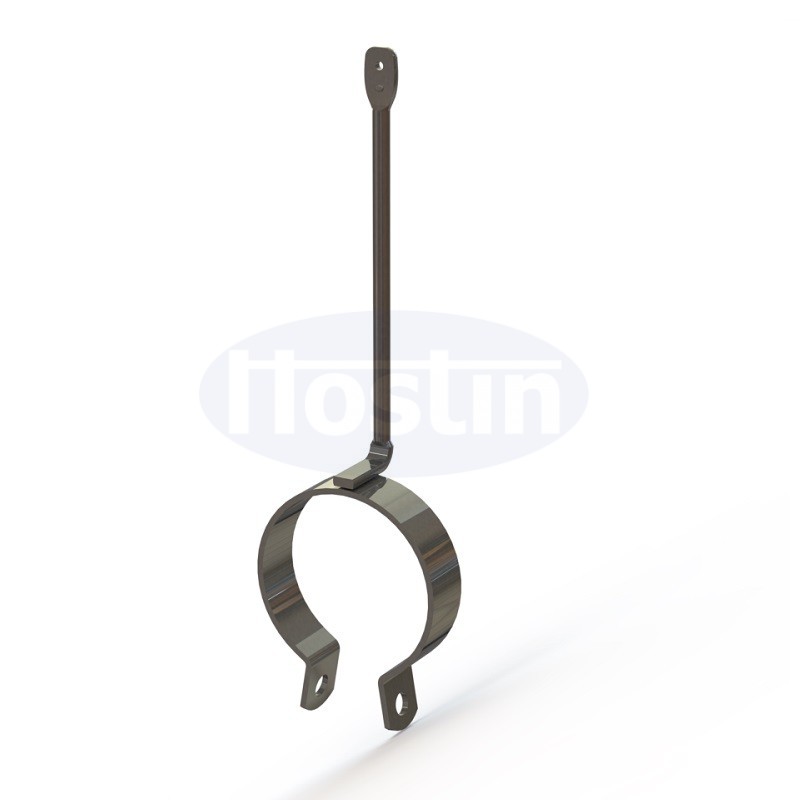

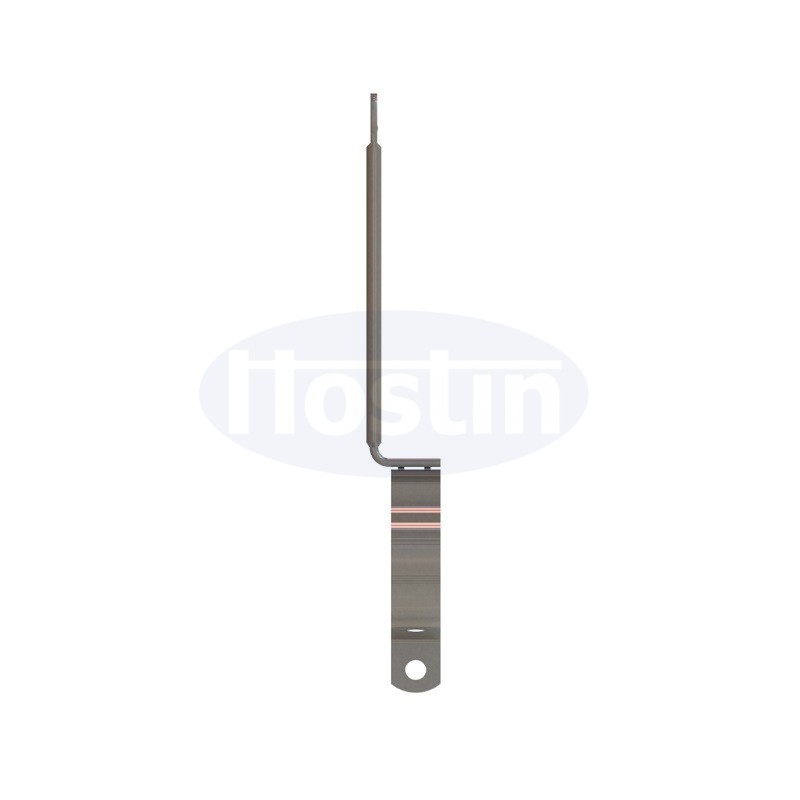

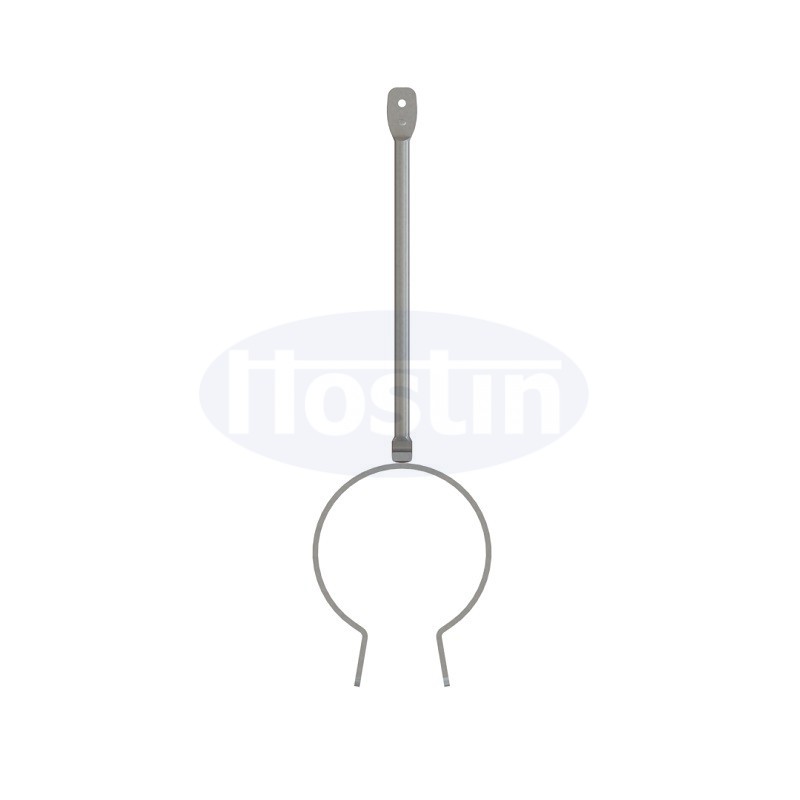

The single-row bird wire barrier consists of a stainless steel cable stretched between individual carrier posts with guiding rods. It provides an effective solution for preventing birds from perching on or contaminating pipes, gutters, and pipelines.

Available in different sizes, this barrier is suitable for pipe diameters ranging from 25 mm to 80 mm.

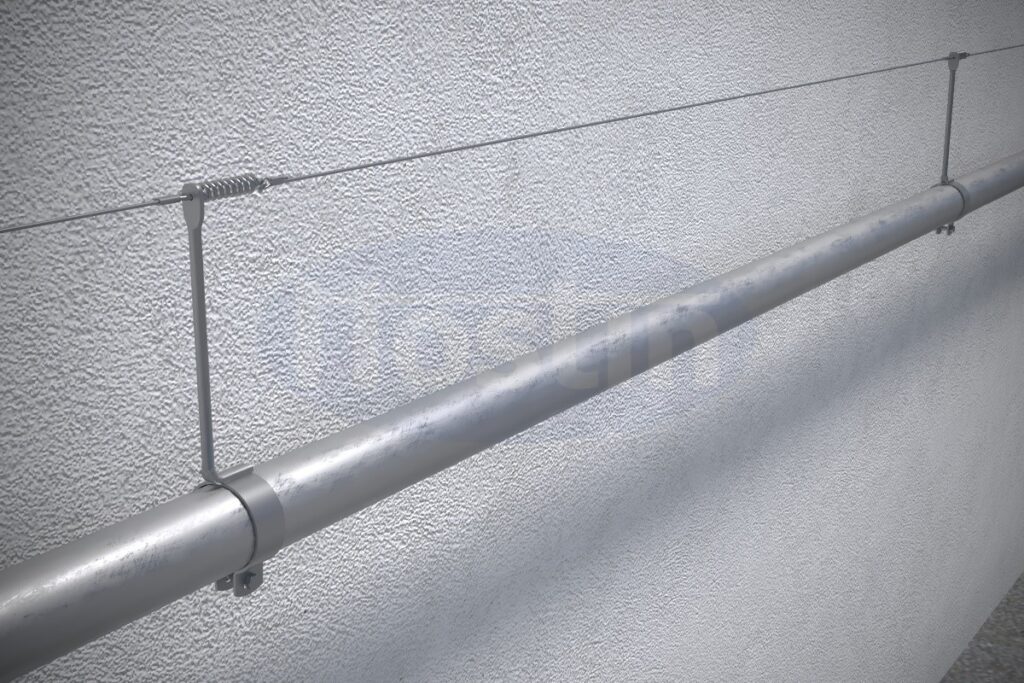

Installation

  • Carrier posts should be installed 1.5 meters apart.
  • A steel wire is then stretched through the posts.

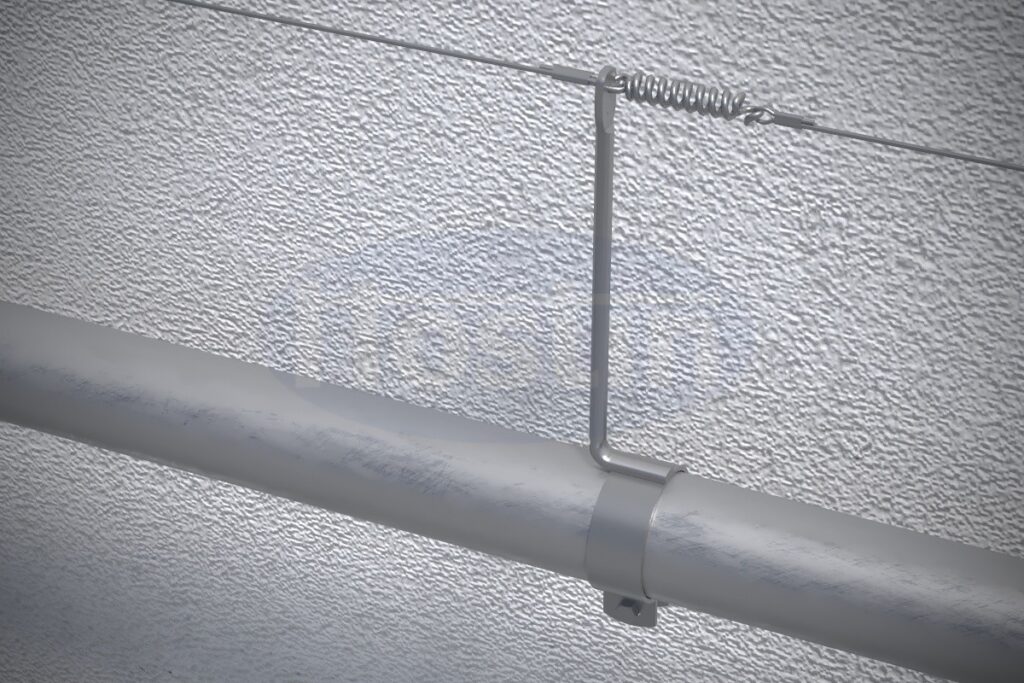

  • A spring must be installed at the end of the wire to ensure proper tensioning.
  • The carrier post is secured around the pipe by fastening the protrusions on the carrier belt with a screw and nut.

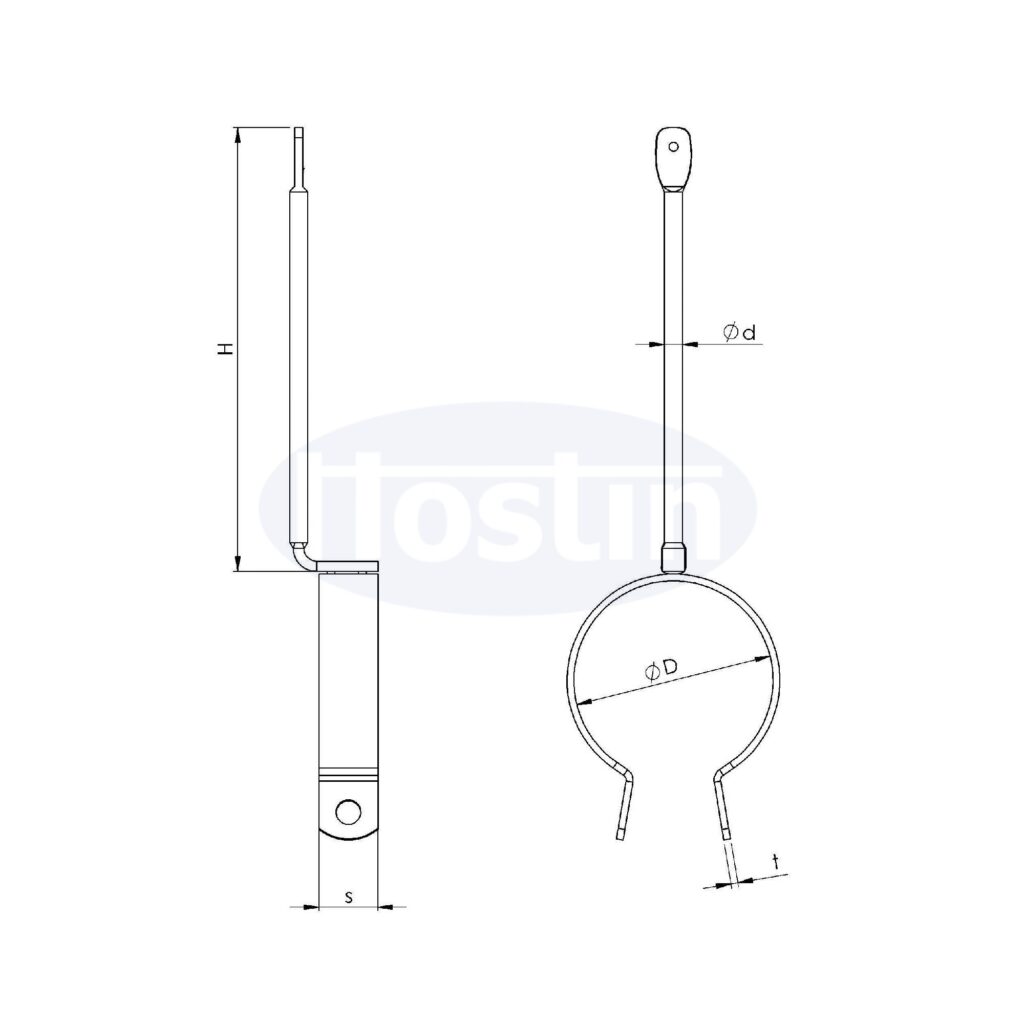

For gutter diameter (D)

25mm, 27mm, 32mm, 35mm, 35-40mm, 42mm, 40-50mm, 45mm, 50-60mm, 60-70mm, 70-80mm

Rod diameter (d)

4.0mm

Rod height (H)

98mm

Carrier belt length (P)

107mm, 114mm, 128mm, 134mm, 150mm, 161mm, 165mm, 168mm, 185mm, 220mm, 245mm

Carrier belt width (s)

13mm

Carrier belt thickness (t)

1.5mm

Material

Stainless steel 1.4301

Attachment

By screwing / gluing / riveting
