2-Row Bird Wire Barrier for Gutters with Protection

Bird Wire Barriers for Gutters (Custom Diameter and Length of the Carrier Belt)

0,00

Price inquiry

SKU: PL2T40Q-100 Categories: ,
30 years
in business
Quality
guaranteed
Made
in EU

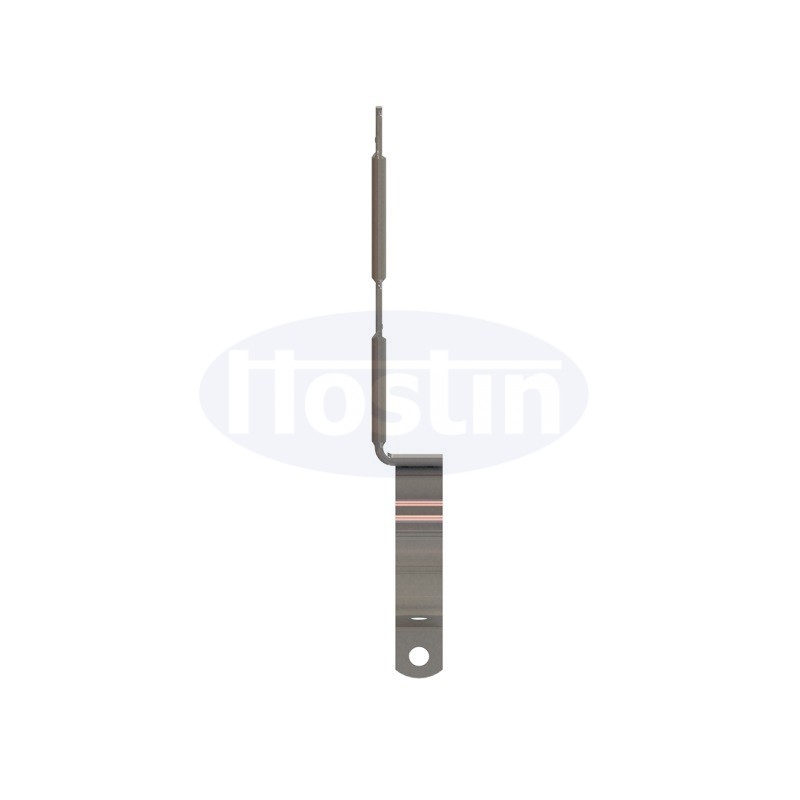

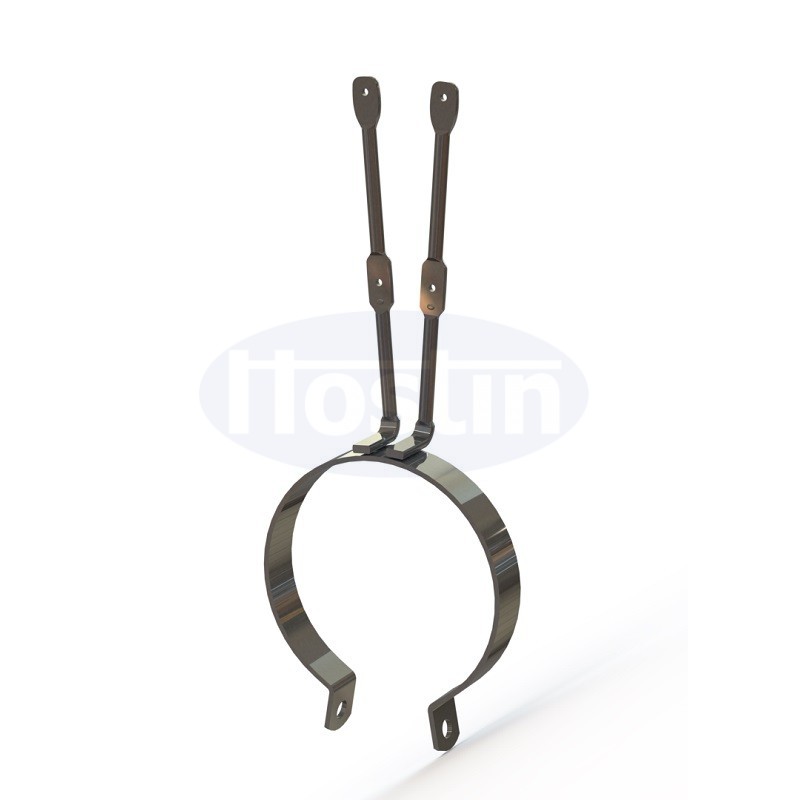

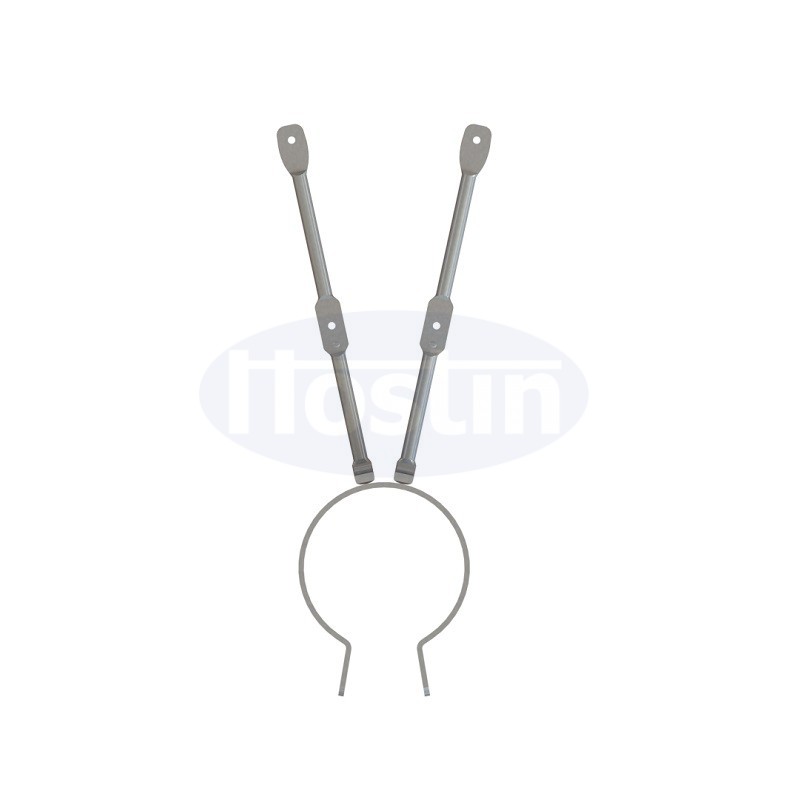

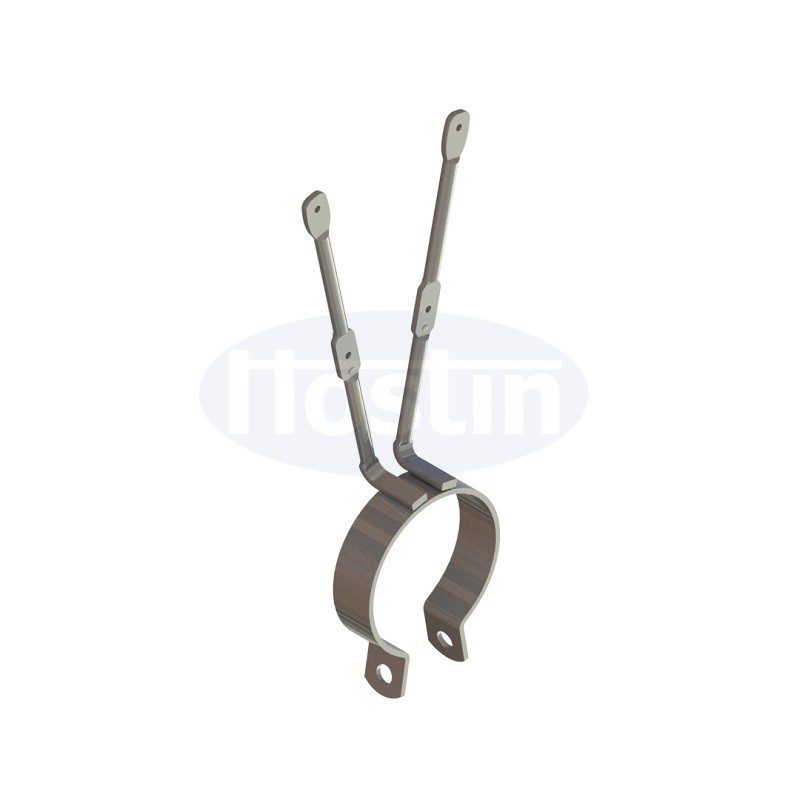

The 2-row bird wire barrier for gutters is designed to protect pipes, gutters, and pipelines from bird contamination. The barrier consists of two wires stretched between individual carrier posts with guiding rods. In addition, the protection feature includes an extra wire stretched through the carrier rod at the center, preventing birds from flying underneath the barrier. This barrier is available in various sizes to accommodate pipe diameters ranging from 25 mm to 80 mm.

Installation:

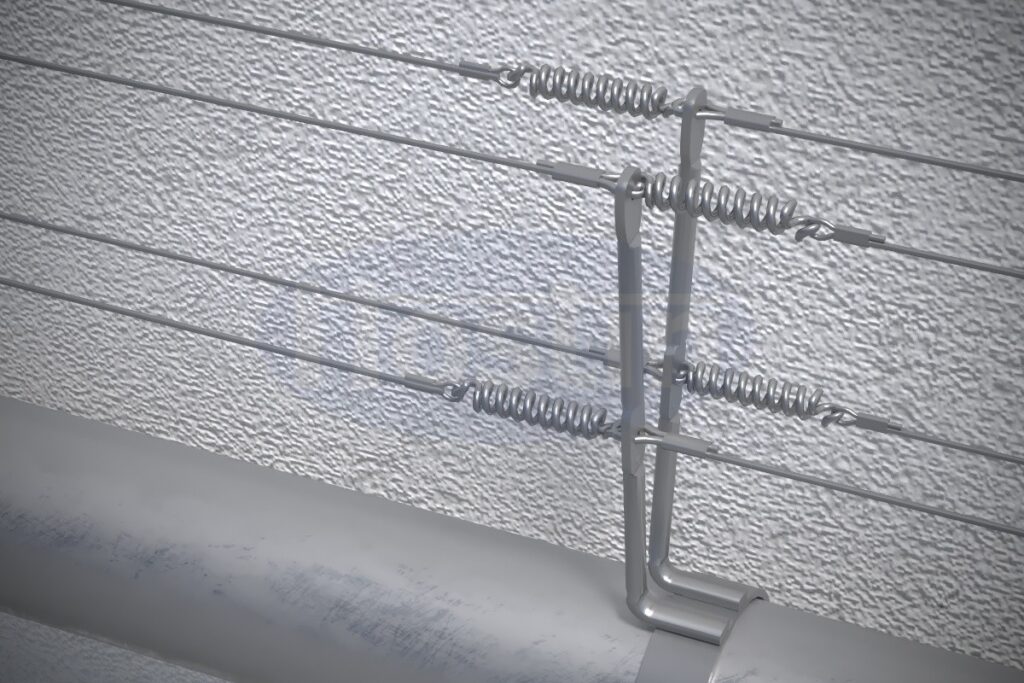

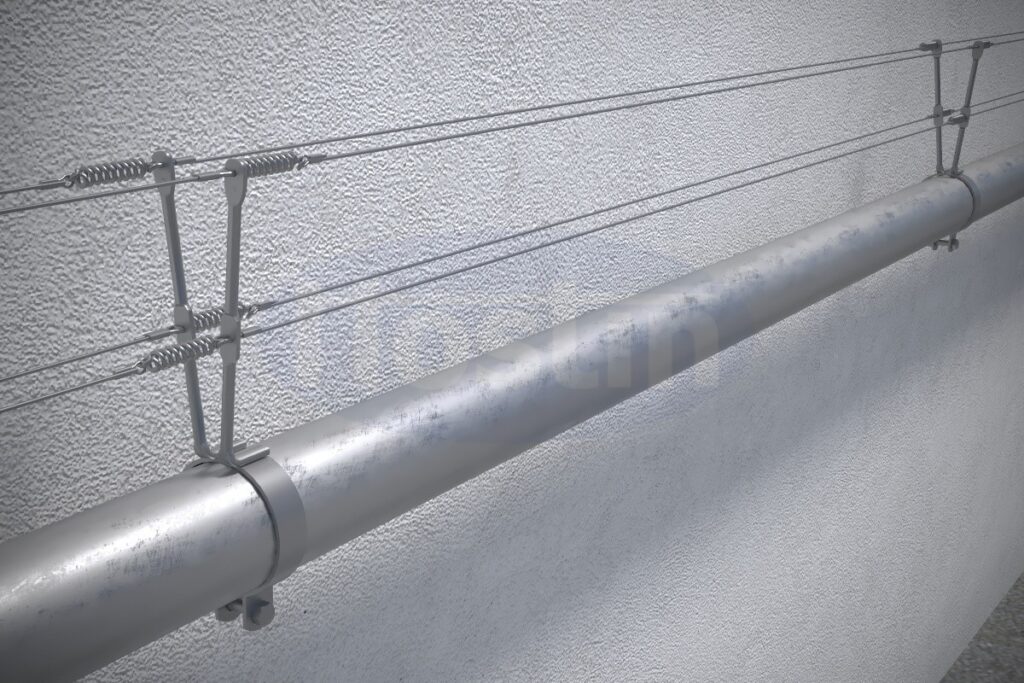

To install the barrier, place the carrier posts approximately 1.5 meters apart, and then stretch steel wires between them. Springs are added at the ends of the cables to ensure proper tensioning. The carrier posts are secured around the pipe by connecting the protrusions at the ends of the carrier belt using screws and nuts.

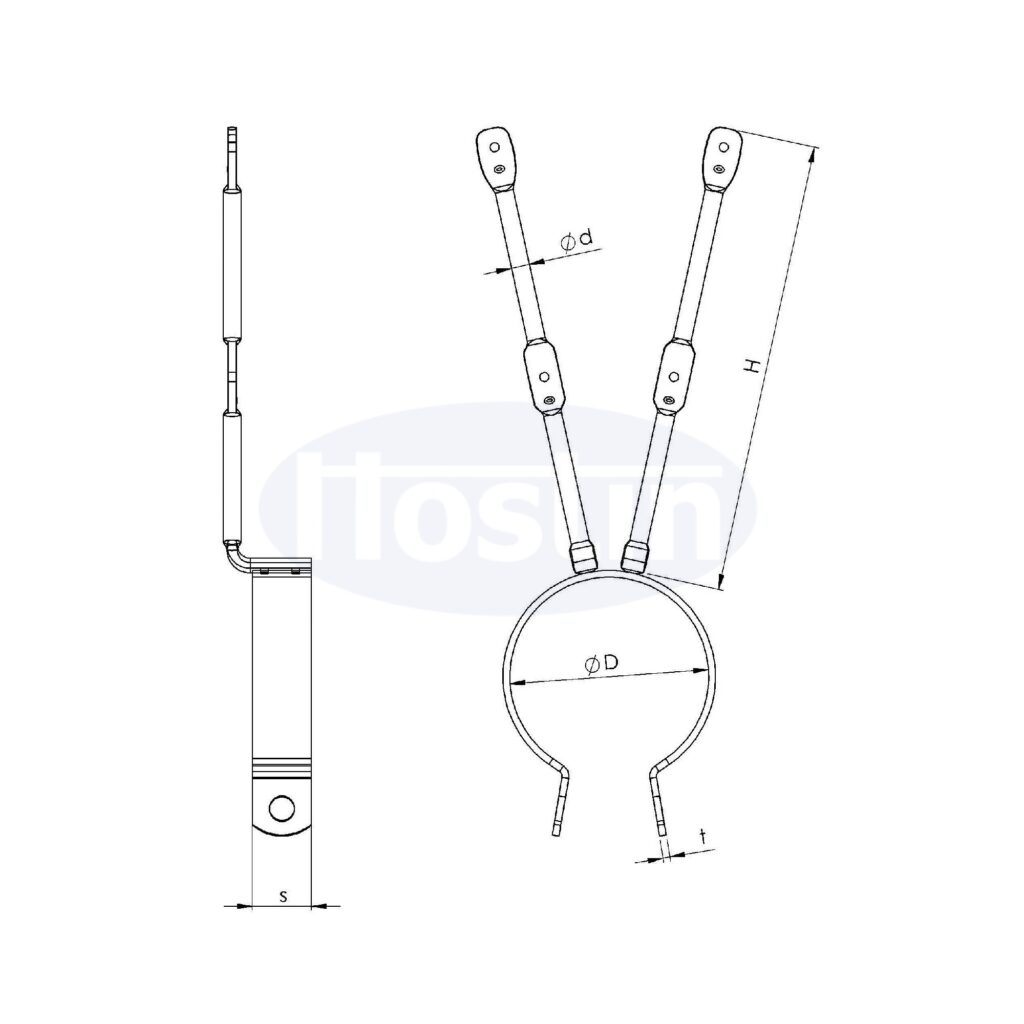

Rod diameter (d)

4.0mm

Rod height (H)

100mm

Carrier belt length (P)

107mm, 114mm, 128mm, 134mm, 150mm, 161mm, 165mm, 168mm, 185mm, 220mm, 245mm, 340mm, 362mm, 525mm, 653mm

Carrier belt thickness (t)

1.5mm

Carrier belt width (s)

13mm

For gutter diameter (D)

25mm, 27mm, 32mm, 35mm, 35-40mm, 42mm, 40-50mm, 45mm, 50-60mm, 60-70mm, 70-80mm, 100-110mm, 110mm, 159mm, 200mm

Number of holes

2

Material

Stainless steel 1.4301

Attachment

By screwing / gluing / riveting
